Boost Gauge Install

Hey everyone, Cobb just released their stage 1/2 maps for the 2012 WRX + AEM CAI. I just ordered a SMY Clustermaker and AEM Boost Gauge to monitor the boost and make sure I'm using the right wastegate cycle map. I haven't installed the gauge yet since I'm waiting on the clustermaker to show up but I wanted to ask,

does anyone have a good link for a write up or video on how to route/wire the boost gauge in the newer WRX's?

Thus far I found a few how to's but they weren't for my particular gauge or on a 2012.

Thanks for any/all help,
Thepants
thepants1337 is offline
Sponsored Links
Advertisement

post #2 of 20 Old 02-03-2012, 07:05 AM
WRXtuners Member

Join Date: Jun 2007
Location: Texas
Posts: 4,976
pzr2874 is known to be trustworthy and helpful pzr2874 is known to be trustworthy and helpful
Mechanical or Electrical? Link ?

There should still be the grommet in the firewall like on the old ones. The only thing that MIGHT have changed is the tap for the power source.

Paul
2002 WRX Sold
2007 WRX Sold
2007 STi totaled
2007 Foz XT sold
2007 MS3
pzr2874 is offline
post #3 of 20 Old 02-03-2012, 09:09 AM Thread Starter
WRXtuners Member

thepants1337's Avatar

Join Date: Aug 2011
Location: Pennsylvania
Posts: 61
Images: 1
thepants1337 is an unknown
thepants1337 is offline
post #4 of 20 Old 02-03-2012, 09:47 AM
WRXtuners Member

Join Date: Jun 2007
Location: Texas
Posts: 4,976
pzr2874 is known to be trustworthy and helpful pzr2874 is known to be trustworthy and helpful
You get the harness with it ?

Nice gauge BTW

Paul
2002 WRX Sold
2007 WRX Sold
2007 STi totaled
2007 Foz XT sold
2007 MS3
pzr2874 is offline
post #5 of 20 Old 02-03-2012, 10:02 AM Thread Starter
WRXtuners Member

thepants1337's Avatar

Join Date: Aug 2011
Location: Pennsylvania
Posts: 61
Images: 1
thepants1337 is an unknown
I got the SMY Clustermaker to mount it in. Here's the link:

SMY ClusterMaker Dual Gauge Pod 52mm Subaru WRX / STI 2008-2012 / Forester XT 2009-2012 at RallySportDirect.com

Thanks, I think it's pretty nice but I'm also a noob so it's good to hear I'm not the only one.
thepants1337 is offline
post #6 of 20 Old 02-03-2012, 10:11 AM
WRXtuners Member

Join Date: Jun 2007
Location: Texas
Posts: 4,976
pzr2874 is known to be trustworthy and helpful pzr2874 is known to be trustworthy and helpful
No, did it come with the harness for plug-n-play ? If it did, the instructions are straight forward. Only thing to look for is the rubber grommet on the firewall.

Paul
2002 WRX Sold
2007 WRX Sold
2007 STi totaled
2007 Foz XT sold
2007 MS3
pzr2874 is offline
post #7 of 20 Old 02-03-2012, 10:43 AM Thread Starter
WRXtuners Member

thepants1337's Avatar

Join Date: Aug 2011
Location: Pennsylvania
Posts: 61
Images: 1
thepants1337 is an unknown
To be honest I'm not sure. I think I have to use electric tape and setup the wires correctly, because I don't see a harness. How would I check?
thepants1337 is offline
post #8 of 20 Old 02-03-2012, 12:02 PM
WRXtuners Member

Join Date: Jun 2007
Location: Texas
Posts: 4,976
pzr2874 is known to be trustworthy and helpful pzr2874 is known to be trustworthy and helpful
Some have options to buy a harness which makes it an easy plug-n-play install. This one doesn't have an option after looking into it a little more. I haven't played with one of the newer gens so I wouldn't know where to tap the power (I am assuming you can use anything that has accesory power) like the clock or the cigarette lighter. I did the one in my Fozzy and it was a nightmare compared to my last WRX's.

Someone else may chime in. Ask Synolimit or RcrsWetDream as they have later models.


Good luck

Paul
2002 WRX Sold
2007 WRX Sold
2007 STi totaled
2007 Foz XT sold
2007 MS3
pzr2874 is offline
post #9 of 20 Old 02-03-2012, 12:08 PM Thread Starter
WRXtuners Member

thepants1337's Avatar

Join Date: Aug 2011
Location: Pennsylvania
Posts: 61
Images: 1
thepants1337 is an unknown
^Bump^ for synolimit or RcrsWetDream . lol:-D
thepants1337 is offline
post #10 of 20 Old 02-03-2012, 02:56 PM
WRXtuners Member

synolimit's Avatar

Join Date: Aug 2009
Location: Ohio
Posts: 1,415
synolimit is a helpful contributing member
do this...all 08+ are the same.



your directions should tell you what wire is power, ground, ACC, and maybe illumination if your gauge changes color for day and night. this link will tell you want fuse is what. and you dont have to just do those 3 loctaions as many are constant powers, ACC, etc.

Wiring for Prosport Premium Boost Gauge

Scott-2011 WRX 335HP 394TQ 93 VF52!
http://www.wrxtuners.com/forums/f121/2011-wrx-build-31226/
synolimit is offline
post #11 of 20 Old 02-07-2012, 11:56 PM
WRXtuners Member

Join Date: Jan 2010
Location: New York
Posts: 153
djc1827 is an unknown
!Laugh!how bout an accessport

11.82 at 116mph
stock turbo 2011 wrx
337whp 411tq
djc1827 is offline
post #12 of 20 Old 02-08-2012, 02:25 PM Thread Starter
WRXtuners Member

thepants1337's Avatar

Join Date: Aug 2011
Location: Pennsylvania
Posts: 61
Images: 1
thepants1337 is an unknown
Already have one <3 and it's pretty awesome. lol
thepants1337 is offline
post #13 of 20 Old 03-13-2013, 06:03 PM
WRXtuners Member

Join Date: Aug 2008
Location: New York
Posts: 3
RexLove320 is an unknown
Send a message via AIM to RexLove320
Quote:
Originally Posted by synolimit View Post
do this...all 08+ are the same.



your directions should tell you what wire is power, ground, ACC, and maybe illumination if your gauge changes color for day and night. this link will tell you want fuse is what. and you dont have to just do those 3 loctaions as many are constant powers, ACC, etc.

Wiring for Prosport Premium Boost Gauge
bringing post back from the dead....

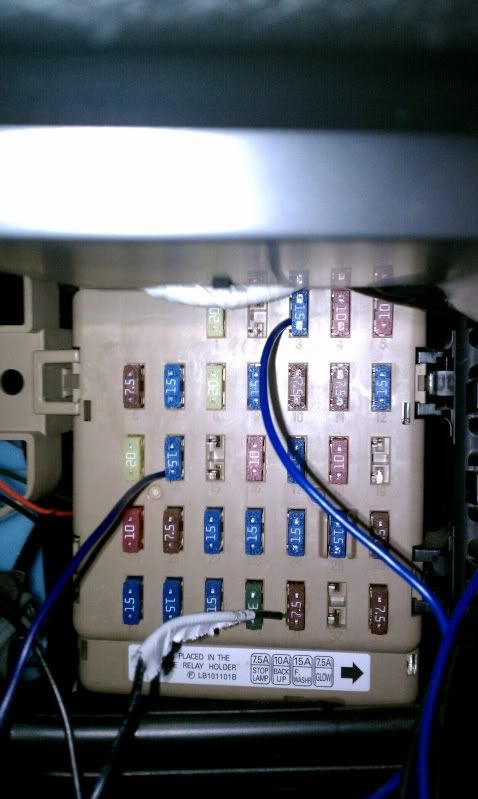

SO, i did this same exact wiring as described on in this picture(from wrxforums) and used the dude's method to tap the fuses.
